1.3: Lights

Like every car should have, Zumi has headlights and brake lights that you can program. On a circuit board, these lights are known as LEDs.
zumi_beginner zumi_beginner

This lesson works with:

Zumi
Python
  • beginner
  • LED
  • lights
  • programming
  • Python
  • Zumi

Grade level:

6 - 12+

Approx. time required:

30 - 45 mins
Step 1

Import libraries

Like every car should have, Zumi has headlights and brake lights that you can program. On a circuit board, these lights are known as LEDs.
In [ ]:
from zumi.zumi import Zumi
import time

zumi = Zumi()
Step 2

What is an LED?

LED stands for “light-emitting diode”. A diode is an electronic device that allows an electronic current to flow in only one direction. LEDs are replacing traditional incandescent light bulbs because they are more efficient.

Zumi’s LEDs

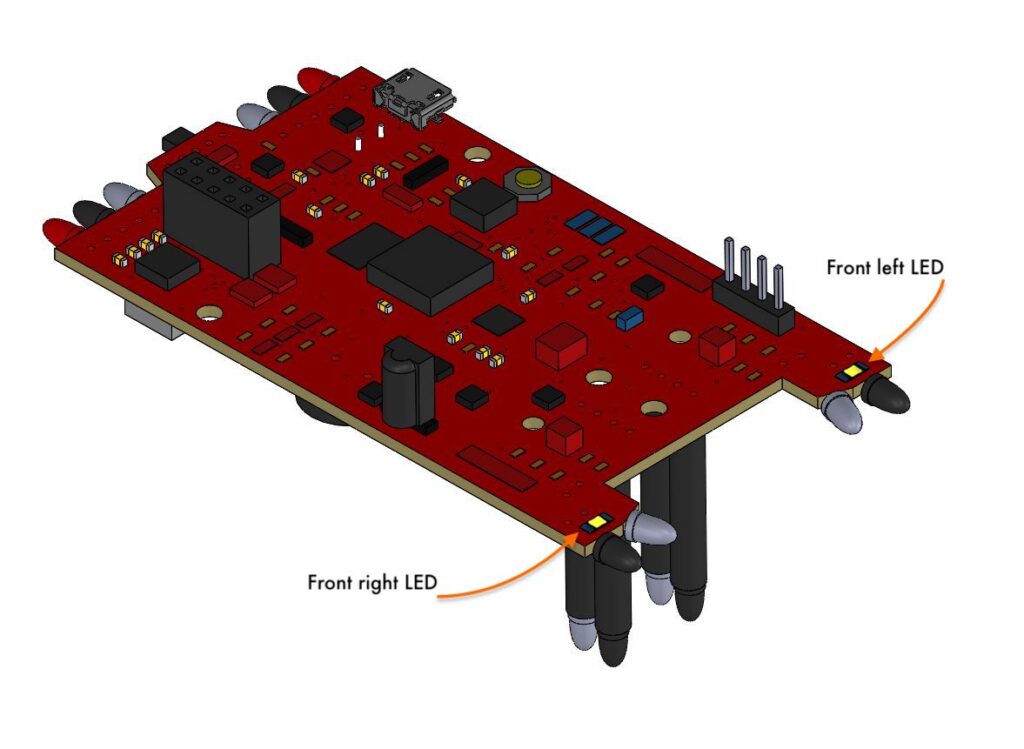

Zumi has 8 LEDs on the board, but you can’t program all of them. There are three LEDs on Zumi’s left side that indicate the charging state, and one white LED on Zumi’s right side that indicates the Pi started successfully. There are two LEDs at the front of the board for headlights. Don’t get them confused with the Infrared (IR) sensors! You will learn about those later. The headlights are actually hidden by the shell.

The back LEDs are much easier to see. They are the red ones on the back of Zumi.

Step 3

Zumi LED Functions

In addition to turning the headlights and brake lights on and off, you can also use turn signals! Here are all of the functions available for you to use:

* all_lights_on()

* all_lights_off()

* headlights_on()

* headlights_off()

* brake_lights_on()

* brake_lights_off()

* hazard_lights_on()

* hazard_lights_off()

* signal_left_on()

* signal_left_off()

* signal_right_on()

* signal_right_off()

Now try incorporating turn signals into your remote control code or writing some new code. Here’s an example that you can test out. Make sure you have a lot of room.

In [ ]:

zumi.signal_right_on()
zumi.forward(duration=3)
zumi.turn_right()
zumi.signal_right_off()
zumi.forward()
